M30 Wind Bracing D-Bracket Malleable Cast Iron Zinc Plated

Stock Code:
A510-30-ZP

Stock Locations

  • Midvale:
    Low Stock
$27.09627
Add to Favourites

Description

M30 Wind Bracing D-Bracket
Malleable Cast Iron Zinc Plated

Standard Pack Size 10

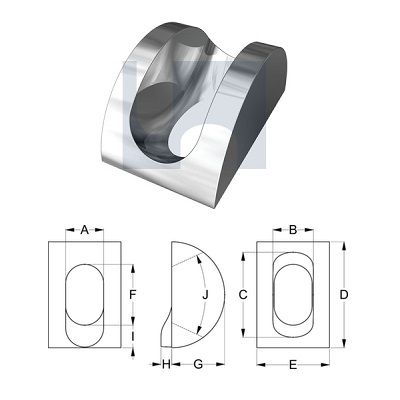

~ Dimensions are a guide only ~

A = 33mm
B = 38mm
C = 101mm
D = 106mm
E = 62mm
F = 65mm
G = 53mm
H = 7mm
I = 20mm
J = 57 degree

For application, steel should be cut with a hole size of: A x (F + I)
