M24 Wind Bracing D-Bracket Malleable Cast Iron Zinc Plated

Stock Code:
A510-24-ZP

Stock Locations

  • Midvale:
    Low Stock
$17.56935
Add to Favourites

Description

M24 Wind Bracing D-Bracket
Malleable Cast Iron Zinc Plated

Standard Pack Size 20

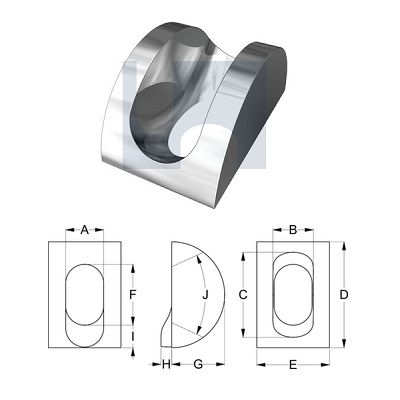

~ Dimensions are a guide only ~

A = 26mm
B = 33mm
C = 81mm
D = 83mm
E = 51mm
F = 49mm
G = 44mm
H = 6mm
I = 17mm
J = 56 degree

For application, steel should be cut with a hole size of: A x (F + I)
