M20 Wind Bracing D-Bracket Malleable Cast Iron Zinc Plated

Stock Code:
A510-20-ZP

Stock Locations

  • Midvale:
    Low Stock
$8.76244
Add to Favourites

Description

M20 Wind Bracing D-Bracket
Malleable Cast Iron Zinc Plated

Standard Pack Size 40

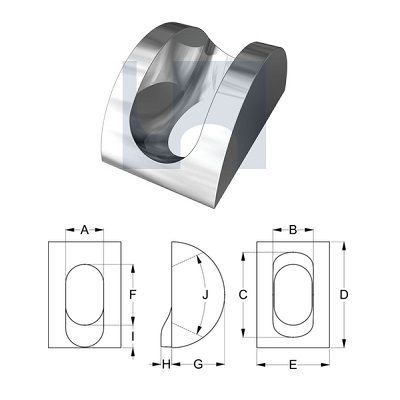

~ Dimensions are a guide only ~

A = 21mm
B = 25mm
C = 51mm
D = 60mm
E = 41mm
F = 33mm
G = 29mm
H = 5mm
I = 13mm
J = 51 degree

For application, steel should be cut with a hole size of: A x (F + I)
