M16 Wind Bracing D-Bracket Malleable Cast Iron Zinc Plated

Stock Code:
A510-16-ZP

Stock Locations

  • Midvale:
    Low Stock
$7.44842
Add to Favourites

Description

M12/M16 Wind Bracing D-Bracket
Malleable Cast Iron Zinc Plated

Standard Pack Size 50

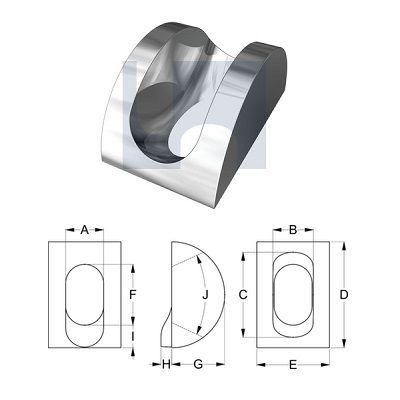

~ Dimensions are a guide only ~

A = 18mm
B = 22mm
C = 49mm
D = 57mm
E = 36mm
F = 28mm
G = 28mm
H = 4mm
I = 13mm
J = 54 degree

For application, steel should be cut with a hole size of: A x (F + I)
